EnquireSculptured Flex

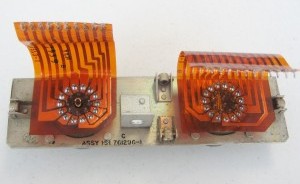

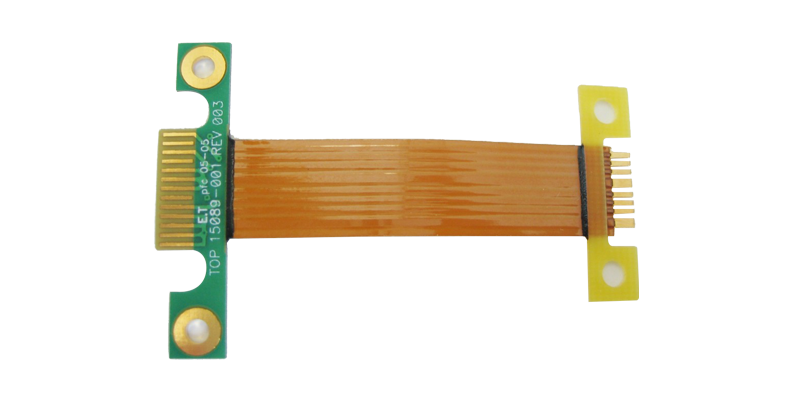

Sculpted flexible circuits have sculpted pins, which are made as a through-hole connector. Sculptured terminal pins are built-in and extended beyond the boundary of the polyimide base material. These pins are plugged into a series of holes in a PCB and then soldered. This circuit design, is also able to be soldered to a series of surface mount pads. Sculpted flex circuits are often chosen to eliminate the need and cost of a ZIF connector.
Built-in contacts eliminate the need to purchase connectors
Integrated design reduces assembly labor costs
Elimination of connector components saves weight and space and increases flexibility
Excellent reliability and performance
single sided
Single-sided flex circuits are the most basic type of flexible circuits, durable across applications and are excellent for installations in small spaces.
Learn More
double
Double-sided circuits have two layers of copper laminated between polyimide dielectrics.
Learn More
multi
Multi-layer flexible circuits combine several single-sided or double-sided circuits with complex interconnections, shielding and/or surface mounted technologies in a multi-layer design.
Learn More
rigid
Rigid flex circuits combine the benefits of rigid boards and flexible circuits integrated into one circuit.
Learn More
high speed data links
PFC has created the PFC High Speed Data Link Flexible Circuits product line, in collaboration with Samtec.
