EnquireMulti

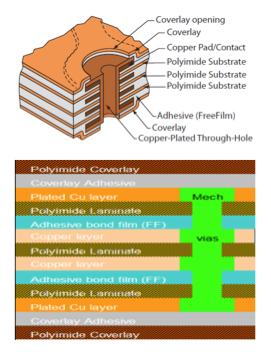

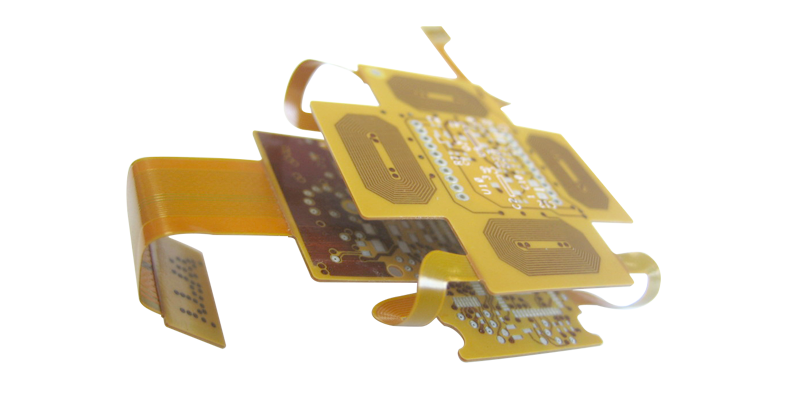

Multi-layer flexible circuits combine several single-sided or double-sided circuits with complex interconnections, shielding and/or surface mounted technologies in a multi-layer design. The number of conductor layers designed into multi-layer flex circuits are limitless. The package size, layer count vs. flexibility is considered during the design layout for ease of installation. Below is a slideshow of a four layer flex circuit for a digital camera application.
Up to 14 layers
Bare flex or complete assembly
SMT and/or through- hole
Provides superior signal integrity
More signals can be routed in the circuit
Offers localized areas for stiffeners and components to be added
single sided
Single-sided flex circuits are the most basic type of flexible circuits, durable across applications and are excellent for installations in small spaces.
Learn More
double
Double-sided circuits have two layers of copper laminated between polyimide dielectrics.
Learn More
rigid
Rigid flex circuits combine the benefits of rigid boards and flexible circuits integrated into one circuit.
Learn More
sculptured flex
Sculpted flexible circuits have sculpted pins, often chosen to eliminate the need and cost of a ZIF connector.
Learn More
high speed data links
PFC has created the PFC High Speed Data Link Flexible Circuits product line, in collaboration with Samtec.
Learn MoreReady to Start?
