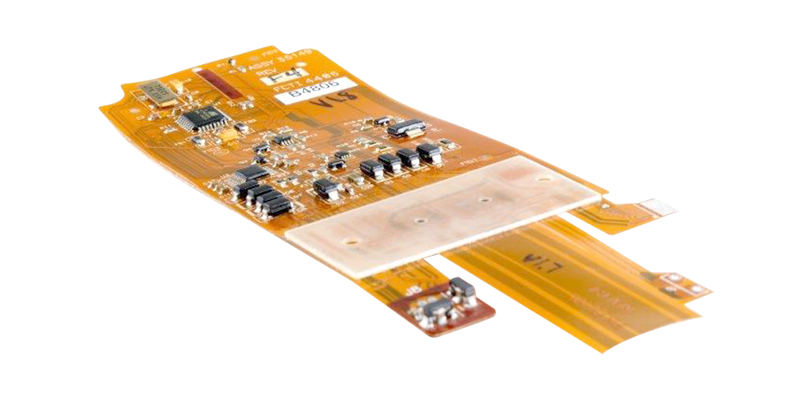

High Speed Data Links

PFC has created the PFC High Speed Data Link Flexible Circuits product line, in collaboration with Samtec. The PFC Data Link is a direct cross to the Samtec Data Link product line, a leader in transmitting and receiving digital information. Our strategic partnership with Samtec has provided customers with improved interconnectivity for PFC and expert flex circuit assembly for Samtec.

Below are the available PFC High Speed Data Link Flexible Circuit drawing packages and product descriptions.

The PFC Data Link drawings include:

  • A bill of materials

  • Test parameters

  • Electrical requirements

  • Specific part number listing

  • Dimensions

  • Material stack

PFC-HFEM2-DP

  • PFC Flex Circuit Assembly, 2 layers, IPC 6013 class 2, RoHS compliant

  • Samtec QXE High Speed Ground Plane Socket interface – 14, 20, 28, 40, 42 and 60 positions

  • Differential pairs, 100 Ohms, +/-10% impedance control, microstrip design

  • The standard lengths are 3, 5 and 10 inches (custom lengths available – contact PFC)

  • Samtec promotes these protocols to be supported with the QSE/QTE connector system: XAUI, PCI Express®, SATA, MGT (Rocket I/O), InfiniBand™

Download

PFC-HFEM2-SE

  • PFC Flex Circuit Assembly, 3 layers, IPC 6013 class 2, RoHS compliant

  • Samtec QSE and QTE High Speed Ground Plane Socket interface – 14, 28, and 42 positions

  • The standard lengths are 3, 5 and 10 inches (custom lengths available – contact PFC)

  • Differential pairs, 100 Ohms, +/-10% impedance control

  • Samtec promotes these protocols to be supported with the QSE/QTE connector system: XAUI, PCI Express®, SATA, MGT (Rocket I/O), InfiniBand™

Download

PFC-HFEM-DP

  • PFC Flex Circuit Assembly, 3 layers, IPC 6013 class 2, RoHS compliant

  • Differential pairs, 100 Ohms, +/-10% impedance control

  • Samtec QSE and QTE High Speed Ground Plane Socket interface – 14, 28, and 42 positions

  • Standard lengths are 3, 5 and 10 inches (custom lengths available – contact PFC)

  • Available with and without mounting holes

  • Samtec promotes these protocols to be supported with the QSE/QTE connector system: XAUI, PCI Express®, SATA, MGT (Rocket I/O), InfiniBand™

Download

PFC-HFEM-SE

  • PFC Flex Circuit Assembly, 3 layers, IPC 6013 class 2, RoHS compliant

  • Samtec QSE and QTE High Speed Ground Plane Socket interface – 14, 28, and 42 positions

  • The standard lengths are 3, 5 and 10 inches (custom lengths available – contact PFC)

  • Differential pairs, 100 Ohms, +/-10% impedance control

  • Samtec promotes these protocols to be supported with the QSE/QTE connector system: XAUI, PCI Express®, SATA, MGT (Rocket I/O), InfiniBand

Download

PFC-HFHM-DP

  • PFC Flex Circuit Assembly, 3 layers, IPC 6013 class 2, RoHS compliant

  • Samtec QSE and QTE High Speed Ground Plane Socket interface – 14, 28, and 42 positions

  • The standard lengths are 3, 5 and 10 inches (custom lengths available – contact PFC)

  • Differential pairs, 100 Ohms, +/-10% impedance control

  • Samtec promotes these protocols to be supported with the QSE/QTE connector system: XAUI, PCI Express®, SATA, MGT (Rocket I/O), InfiniBand™

Download

PFC-HFHM2-DP

  • PFC Flex Circuit sssembly, 3 layers, IPC 6013 class 2, RoHS compliant

  • Samtec QSE and QTE High Speed Ground Plane Socket interface – 14, 28, and 42 positions

  • The standard lengths are 3, 5 and 10 inches (custom lengths available – contact PFC)

  • Differential pairs, 100 Ohms, +/-10% impedance control

  • Samtec promotes these protocols to be supported with the QSE/QTE connector system: XAUI, PCI Express®, SATA, MGT (Rocket I/O), InfiniBand™

Download
